Product Description

12W Power Supply

Model : GEO151UA-XXXX

Description

• Market: USA,Canada,Japan,China,Mexico
• Wall Mount Type
• Meet CEC Regulations
• ROHS Compliance
• No Load Power Consumption Less than 0.3W



General Specifications

Maximum output power:	12W
Input voltage:	90~264Vac
Input Frequency:	47Hz~63Hz
Input Current:	0.36A
Efficiency:	Meet CEC
Ripple noise (max):	+1% voltage Max
Line Regulation:	±1%
Load Regulation:	±5%
Hold-Up Time:	16mS
Over Voltage Protection:	120%
Operating Temperature:	0~40°C
Storage Temperature:	-20~85°C
Storage Humidity:	5%RH~90%RH
Withstand voltage:	AC 3KV
Burn-In Test:	100% Full Load
MTBF:	50000Hours
Weight:	ABOUT 120g



Dimensions
LxWxH: 60.2x44x26.2 (mm)



GFP121U-0520；GEO151UA-0520；GEO151J-0520 [5V2A]
GFP121U-0620；GEO151UA-0620；GEO151J-0620 [6V2A]
GFP121U-0913；GEO151UA-0913；GEO151J-0913 [9V1.3A]
GFP121U-1012；GEO151UA-1012；GEO151J-1012 [10V1.2A]
GFP121U-1210；GEO151UA-1210；GEO151J-1210 [12V1A]
GFP121U-1508；GEO151UA-1508；GEO151J-1508 [15V0.8A]
GFP151U-0525；GFP151UA-0525；GFP151J-0525 [5V2.5A]
GFP151U-0623；GEO151UA-0623；GEO151J-0623 [6V2.3A]
GFP151U-0916；GEO151UA-0916；GEO151J-0916 [9V1.6A]
GFP151U-1015；GEO151UA-1015；GEO151J-1015 [10V1.5A]
GFP151U-1212；GEO151UA-1212；GEO151J-1212 [12V1.25A]

GFP151U-1510；GEO151UA-1510；GEO151J-1510 [15V1A]

GEO151C-1215；GEO151UA-1215；GEO151J-1215[12V1.5A]
GFP121C-0520；GEO151C-0520 [5V2A]
GFP121C-0620；GEO151C-0620 [6V2A]
GFP121C-0913；GEO151C-0913 [9V1.3A]
GFP121C-1012；GEO151C-1012 [10V1.2A]
GFP121C-1210；GEO151C-1210 [12V1A]
GFP121C-1508；GEO151C-1508 [15V0.8A]

Pls send email to zenger@mountpower.net.cn,If you need our product,

We will offer the best price according the Qty,and we can ship goods to all over the world.

We can accept paypal payment.





Payment Terms︰ T/T,PAYPAL,Credit card

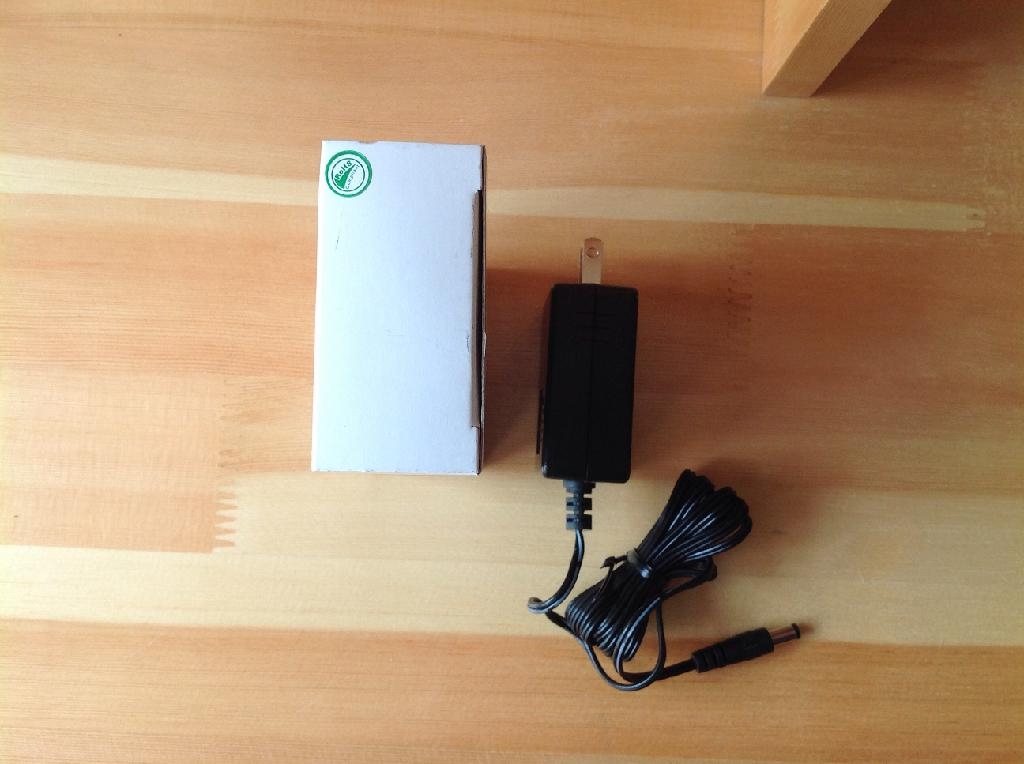

Product Image
